This series of milling machine safety guards is designed for table mounting on medium to large sized milling machines. The guards feature front sliding doors monitored by safety rated 2NC micro switches and removable side panels as required for extra long components. These guards are manufactured from special aluminium extrusions and clear Plexiglas Resist 65 shock resistant acrylic panels.
As well as four standard sizes, specials can be supplied to special order. Long length models are available to suit machines such as Bedmills.
|

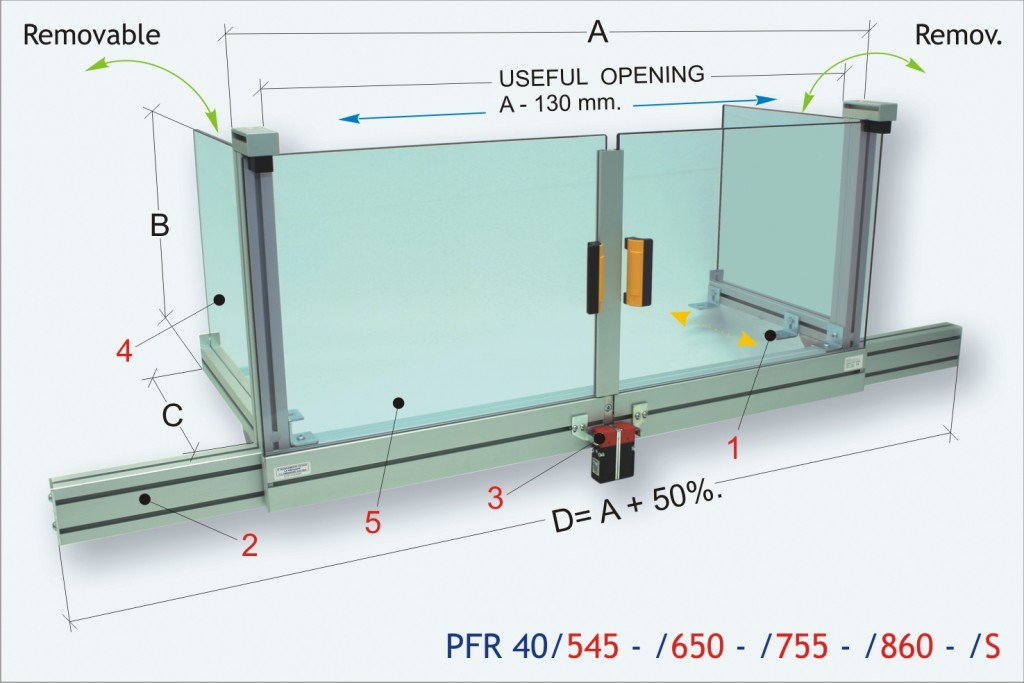

MODEL |
Table length (A) |
Height of guard (B) |
Width of end panels (C) |
Guard Length (D) |
Useful Opening |
|
PFR 30/545 |
1000mm |
450mm |
350mm |
1500mm |
870mm |
|
PFR 30/650 |
1200mm |
500mm |
400mm |
1800mm |
1070mm |
|
PFR 30/755 |
1400mm |
550mm |
450mm |
2100mm |
1270mm |
|
PFR 30/860 |
1600mm |
600mm |
500mm |
2400mm |
1470mm |
